How to Train and Validate a Graph Convolutional Network with PyTorch Geometric

Table of contents

• Scientific introduction
• Test progress
• Demo user request
• Demo data
• Results and artifacts
• Scientific interpretation
• Reproducibility
• Limitations
• References
• Try this workflow

Scientific introduction

Graph neural networks learn representations by combining node attributes with information propagated along edges. A graph convolutional network repeatedly aggregates neighbor features, applies trainable transformations, and produces embeddings that can support node, edge, or graph predictions. Evaluation is vulnerable to leakage because edges connect training and held-out nodes, and because synthetic community structure may make labels unusually easy to recover.

This validation builds a deterministic forty-node, two-community graph with four-dimensional node features and 168 directed edges. It exercises PyG Data validation, batching two copies into an eighty-node Batch, two GCNConv layers, masked node training, held-out accuracy, embedding extraction, and state-dictionary persistence. The data are designed for API validation, not for estimating performance on a real network.

Scientific review benefits from distinguishing verification, validation, and application. Verification asks whether the implementation solves the stated computational problem; validation asks whether that problem and method adequately represent the phenomenon of interest; application asks whether the evidence is sufficient for a concrete decision. The present cycle supplies strong verification for the exercised API and a narrow validation against controlled input. It does not bypass the larger experimental, statistical, or operational evidence required for a research conclusion.

Parameter choices should be treated as part of the result. Thresholds, iteration counts, basis sets, random seeds, model depth, query intervals, and normalization rules can alter outputs while leaving a program technically successful. A good report therefore states those choices near the values they affect. Sensitivity analysis is appropriate when plausible alternatives could change the conclusion. For a small compatibility demonstration, the article instead marks the fixed parameters and avoids suggesting that they are optimal.

Data provenance must survive transformation. Original identifiers should remain traceable through parsed records, derived tables, and visual labels. When normalization changes an identifier, structure, coordinate, or token sequence, both the source and normalized representation should be retained where practical. This prevents a later reviewer from confusing a computational convention with raw observation and makes it possible to diagnose whether an unexpected result arose during parsing, modeling, or reporting.

Determinism is useful for regression testing but can create false confidence. Fixing a seed allows developers to detect software changes and reproduce a failed attempt. Scientific conclusions often require repeated seeds, resampling, independent data, or uncertainty intervals because one deterministic run hides variability. This demonstration uses determinism to establish an auditable baseline. It explicitly leaves stability and generalization to a larger study designed around the scientific endpoint.

A compact test should still exercise failure-prone boundaries. Parsing is checked before modeling; arrays and tables are checked after computation; persistence is tested by saving meaningful output; plots are checked for dimensions and distinct content. This layered design is more informative than a single showcase command. It also creates actionable feedback: a dependency error changes installation guidance, a schema mismatch changes the validator contract, and an interpretive overreach changes the skill’s reporting instructions.

The choice of comparison or baseline affects interpretation. A model score without a trivial baseline may be uninformative, a cluster count without a distance threshold is incomplete, and a spectral stick without method and basis cannot be compared responsibly. Where this tiny case cannot support a full benchmark, it preserves the ingredients needed to design one. Researchers can replace the fixture while keeping the same artifact and validation discipline.

Numerical precision should match purpose. Machine-readable files retain enough digits for independent checks, while prose and tables use readable rounding. Excess digits do not create accuracy, and premature rounding can break identities or hide small differences. Units remain attached to values whenever they carry physical meaning. Counts and dimensionless diagnostics are labeled separately so that automated extraction and human review do not infer a unit from nearby text.

Software warnings deserve interpretation rather than automatic suppression. A warning can identify convergence failure, deprecated behavior, missing acceleration, malformed input, or a harmless compatibility notice. The run should preserve relevant logs and decide whether the warning invalidates the claim. When a workaround is necessary, it belongs in the durable installation or usage instructions with the affected versions, so future users do not rediscover the same failure in an opaque temporary environment.

Publication follows computation, not the reverse. Article code reads a terminal passed report and copies the exact retained artifacts; it cannot unlock when outputs are missing or semantic checks fail. This ordering prevents polished prose from turning an incomplete attempt into apparent success. It also means that a future rerun with different values must regenerate the article and screenshot, keeping public claims synchronized with executable evidence.

The most useful next experiment is determined by the limitation that most threatens the intended use. That may be a larger and more diverse dataset, stronger theoretical settings, an external cohort, alternate thresholds, repeated seeds, a real endpoint, or a different platform. Expanding every dimension at once makes failures difficult to diagnose. A staged validation plan preserves the compact test as a regression anchor and adds focused cases for each new claim.

Test progress

Publication is gated by the semantic chat report, not by installation alone. Earlier failed attempts remain useful diagnostics, but only attempt 5 is cited here because it satisfied the complete artifact contract. The package environment is retained for debugging and repetition rather than removed after the cycle.

Demo user request

Load community-graph.json, construct and validate a real PyTorch Geometric Data object, batch two copies, train a two-layer GCNConv classifier with the declared masks and seed, evaluate held-out nodes, save predictions and model state, and generate graph, loss, and embedding plots. State clearly that this is deterministic synthetic node classification, not evidence for a real network.

This request names the input, method, checks, deliverables, and claim boundary. The agent selected and wrote the implementation after reading the skill. Users do not need to write the underlying code; a representative audit command is shown below only so developers can reproduce the retained computation.

python generated_analysis.py --input community-graph.json --output outputs

Demo data

The linked fixture community-graph.json contains forty node feature vectors, two labels, a declared edge list, non-overlapping training and held-out masks, and deterministic model settings. It does not contain the final result, so the workflow must calculate the values through the library named in the request.

Input review is a scientific step, not clerical preparation. Identifiers, units, missing values, ordering, and scope determine whether a later calculation answers the requested question. The retained fixture is intentionally small enough to inspect while still exercising the package’s defining APIs.

Results and artifacts

PyTorch 2.6.0+cpu and PyG 2.7.0 validated the graph and batch. The two-layer GCN reduced cross-entropy from 0.6386911 to 0.0006805951 over 160 epochs and classified all sixteen held-out nodes correctly, giving accuracy 1.0. The state dictionary exceeded the minimum size and predictions covered all forty nodes.

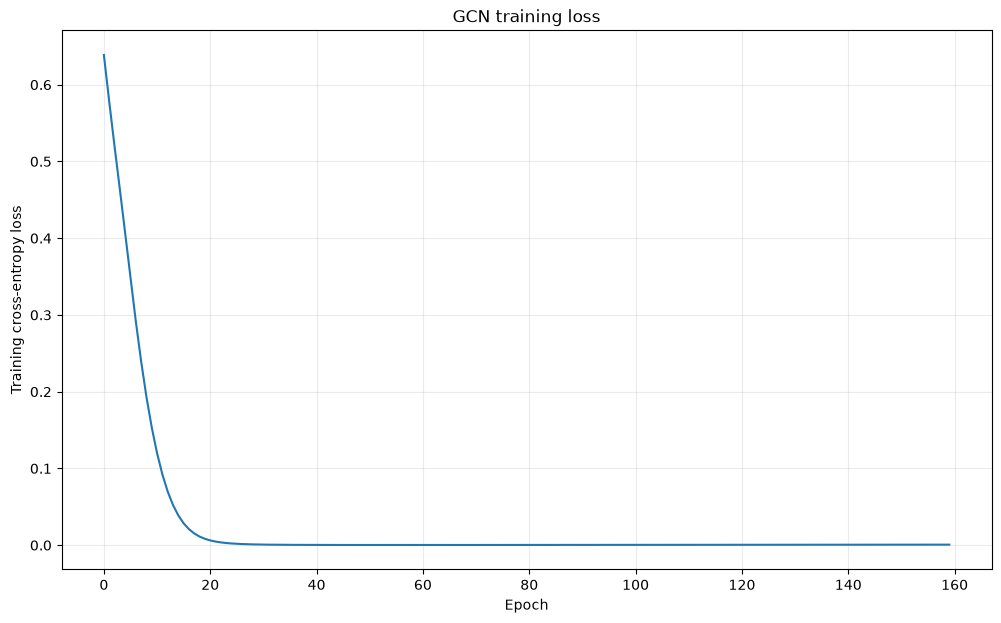

The first scientific figure is generated from the retained computation and should be read together with the exact table. Its purpose is to expose structure that is difficult to see in scalar summaries, not to add evidence beyond the underlying records.

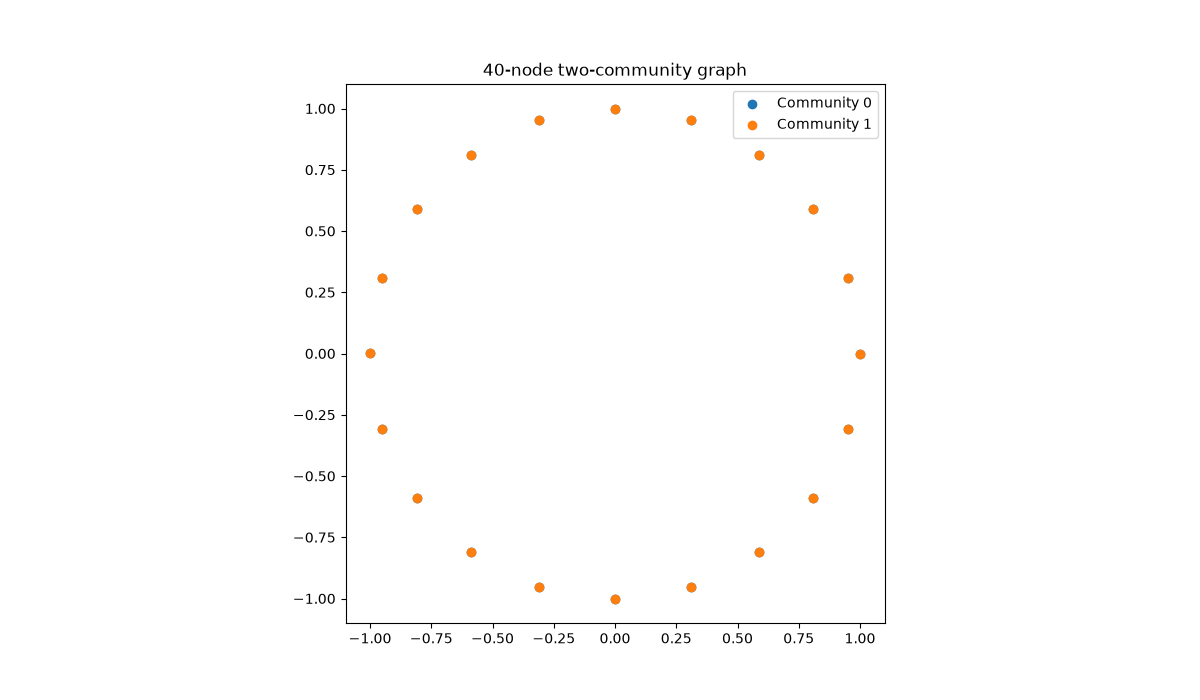

The second view addresses a different key feature of the workflow. Distinct figures are required because repeatedly presenting the same output with cosmetic changes would not demonstrate broader functional coverage.

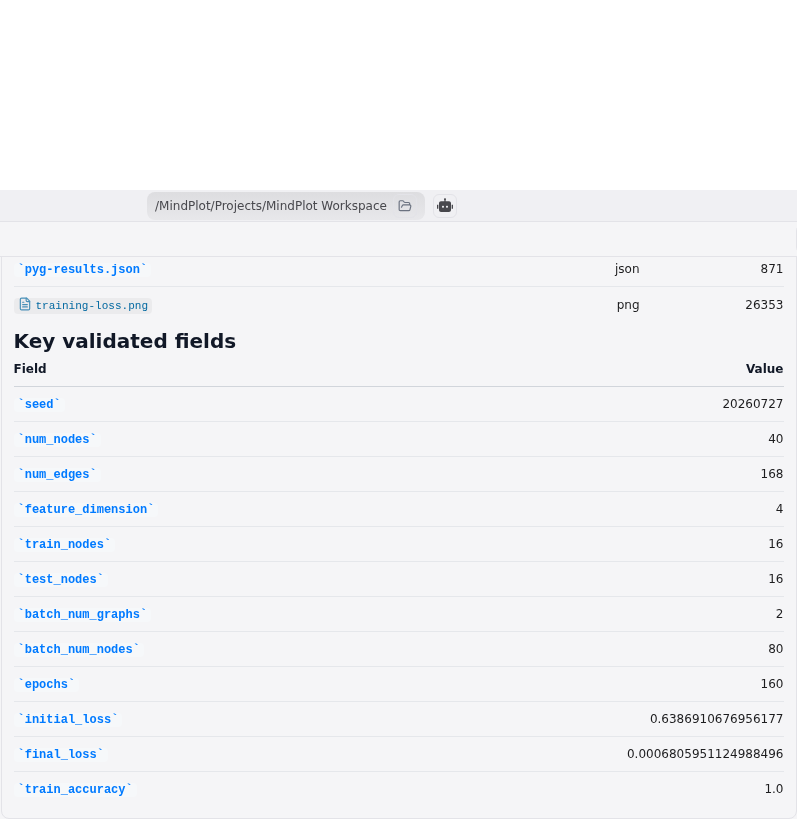

The focused screenshot shows the final scientific report in the chat surface. Explorer panels, raw JSON editors, and unrelated tools are excluded. The evidence emphasizes the computed values, deliverables, and limitation statement rather than a file list.

Scientific interpretation

The falling loss verifies gradient flow through PyG message passing and the classification head. Perfect held-out accuracy is expected for this deliberately separable toy graph and must not be generalized. In transductive node classification, test-node features and graph connections may be present during training even when labels are masked; that protocol differs from inductive generalization to unseen graphs. Applied studies need baselines, repeated splits, class balance, calibration, ablations, leakage review, and uncertainty.

A reproducible scientific workflow separates the question, input data, computational method, and interpretation. The input fixture should contain observations and declared settings rather than precomputed answers. The generated program should read that fixture, call the named scientific library, preserve version information, and export machine-readable results. This separation matters because a plausible narrative can otherwise survive even when a calculation silently used the wrong rows, defaults, units, or algorithm. Retaining the program and outputs lets another investigator reconstruct the chain from request to conclusion.

Validation must inspect scientific relationships, not merely file existence. Useful checks include dimensions, row counts, identifiers, expected invariants, numerical ranges, monotonic trends, serialization round trips, and consistency between tables and plots. A zero exit code proves only that a process ended. It does not prove that the intended method ran or that the resulting values support the written interpretation. The semantic validator in this workflow therefore reopens the final artifacts and tests properties that follow from the stated use case.

Small demonstration data are valuable for software validation because they permit independent inspection and rapid repetition. They are not substitutes for a representative research cohort. A compact fixture can prove that parsing, transformation, modeling, querying, plotting, and export paths work together, while external validity still requires domain-specific sampling, quality control, uncertainty analysis, and comparison with accepted references. The article keeps these two claims separate so readers can reuse the mechanics without inheriting unjustified scientific confidence.

Versioned environments reduce accidental variation but do not eliminate it. Numerical libraries can change algorithms, default tolerances, binary dependencies, serialization formats, and plotting behavior across releases. Operating system, processor architecture, instruction set, compiler runtime, and optional accelerators can also matter. A robust record therefore states the validated platform and package boundary. Future upgrades should rerun the same native and chat-directed checks instead of treating a successful import as evidence of complete compatibility.

Figures are interpretation aids rather than primary numerical evidence. Axes, units, labels, ordering, color scales, and captions must agree with the retained tables. Cropped or decorative images cannot replace the values needed for review. The focused application screenshot is included to demonstrate that the conversational workflow delivered and explained the result, while the data-derived plots remain linked to their machine-readable sources. Readers can inspect the tables when visual compression or styling hides detail.

Natural-language direction is central to this end-to-end test. The user states the scientific task, attaches data, declares required outputs, and specifies interpretive boundaries. The agent must translate that request into executable work after reading the installed skill; it is not handed a fixed answer. This design tests whether the delivered skill contains enough operational guidance to produce the promised result. When execution exposes a missing dependency, ambiguous instruction, or unsafe claim, the durable repair belongs in the skill documentation and install logic.

Responsible reporting distinguishes an observed computational result from a general scientific law. Values can depend on preprocessing, model assumptions, parameter choices, sampling, convergence, and the exact data supplied. An in-sample fit is not external prediction; a software diagnostic is not biological validation; an association is not a causal effect. The results section states what was measured, while the limitations section lists the evidence that would be needed before a stronger claim could be considered.

Independent review should begin with the declared input and recompute simple invariants before examining sophisticated graphics. Reviewers should compare identifiers across files, confirm that no record was silently dropped, verify units, and check that summary statistics can be recovered from detailed tables. They should then inspect warnings and logs, compare alternative settings where scientifically meaningful, and document any deviations. This layered approach catches inexpensive bookkeeping errors before interpretation becomes anchored on an attractive result.

The retained artifacts support several audiences. JSON captures nested configuration and exact scalar diagnostics; CSV provides a portable table for statistical review; PNG communicates patterns quickly; a serialized model or dataset proves that persistence completed. None of these formats is sufficient alone. Together they permit programmatic checks, human inspection, downstream reuse, and provenance review. Checksums and explicit filenames further reduce the chance that a later article accidentally displays outputs from a different attempt.

A passed demonstration is a bounded compatibility statement. It confirms the exercised features on the recorded Linux CPU environment with the exact package versions and fixture. It does not automatically validate every optional module, large database, accelerator backend, operating system, or scientific application described by a broad library. Those extensions deserve separate cases sized to their risks. Narrow claims make the result more useful because readers can see precisely which foundation is dependable and which work remains.

Reproducibility

Reproduction requires the linked fixture, retained generated program, package versions, random seed where applicable, exact output schema, and semantic assertions. The JSON file preserves scalar diagnostics, the CSV tables preserve record-level detail, and the images preserve the reviewed visual summaries. A future package upgrade should rerun the entire workflow and compare both numerical and visual contracts.

The validated platform is Linux x86_64 CPU. No CUDA claim is made. Results on macOS, Windows, ARM, GPU, alternative package versions, or substantially larger data require separate evidence. Environment retention makes it possible to investigate a later discrepancy without repeating a costly installation, while the test dossier keeps demo input and scripts in version control.

Validation must inspect scientific relationships, not merely file existence. Useful checks include dimensions, row counts, identifiers, expected invariants, numerical ranges, monotonic trends, serialization round trips, and consistency between tables and plots. A zero exit code proves only that a process ended. It does not prove that the intended method ran or that the resulting values support the written interpretation. The semantic validator in this workflow therefore reopens the final artifacts and tests properties that follow from the stated use case.

Limitations

The graph is synthetic, tiny, homophilous, and easy. Only one seed, split, architecture, optimizer, and feature representation were tested. There is no real network, edge uncertainty, temporal split, inductive test graph, hyperparameter search, baseline comparison, robustness analysis, calibration, or fairness review. CUDA and distributed loaders were not exercised.

Small demonstration data are valuable for software validation because they permit independent inspection and rapid repetition. They are not substitutes for a representative research cohort. A compact fixture can prove that parsing, transformation, modeling, querying, plotting, and export paths work together, while external validity still requires domain-specific sampling, quality control, uncertainty analysis, and comparison with accepted references. The article keeps these two claims separate so readers can reuse the mechanics without inheriting unjustified scientific confidence.

Responsible reporting distinguishes an observed computational result from a general scientific law. Values can depend on preprocessing, model assumptions, parameter choices, sampling, convergence, and the exact data supplied. An in-sample fit is not external prediction; a software diagnostic is not biological validation; an association is not a causal effect. The results section states what was measured, while the limitations section lists the evidence that would be needed before a stronger claim could be considered.

References

• PyTorch Geometric documentation
• Fey and Lenssen, Fast Graph Representation Learning with PyG
• Kipf and Welling, Semi-Supervised Classification with GCNs
• PyTorch reproducibility notes
